Plugin/Magento/Magento 1

Magento Magento 1

warning

The following instructions are valid only for already active merchants using Magento 1.
New merchants will have to follow the instructions for Magento 2 available on this page.
We remind you that Magento suggested the merchants using Magento 1 to switch to Magento 2 within 2020.
Starting from January 1st 2022, Axerve will not be offering support for plugin versions using Magento 1.

Banca Sella PRO allows you to connect the Magento checkout page with Axerve. Axerve Ecommerce Solutions PRO has three different integration modes:

  • Standard mode – the user is redirected on Axerve payment page and, once the transaction is completed, sent back to the shop;

  • iFrame mode – you can customise every aspect of your payment page, like layout and language, while letting Axerve Ecommerce Solutions handle sensitive credit card data;

  • Token mode – with this service, credit card data can be safely stored on Axerve's servers and users can keep purchasing in just one click (just like in big online stores).

You can download the plug-in hereexternal link

default

At the moment the Token feature works only with Magento's Recurring Profile Payment feature.

Compatibility

Banca Sella PRO has been tested with these versions:

Community Edition
Enterprise Edition

1.7.0.2

1.12

1.8.1.0

1.13

1.9.2.4

1.14

The module is also compatible with IWD One Step / Page Checkoutexternal link.

default

Axerve Ecommerce Solutions does not guarantee compatibility with other third parties' plugins that interfere with the checkout process.

Install via Magento Connect Manager

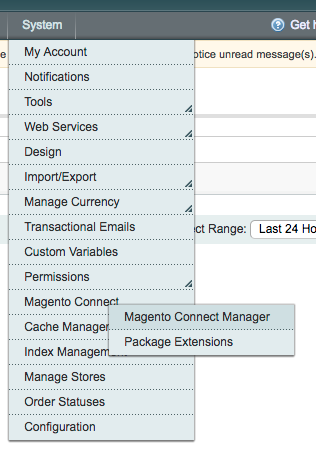

From your admin page, go to System > Magento Connect > Magento Connect Manager:

Log in again if Magento Connect Manager asks you to do so.

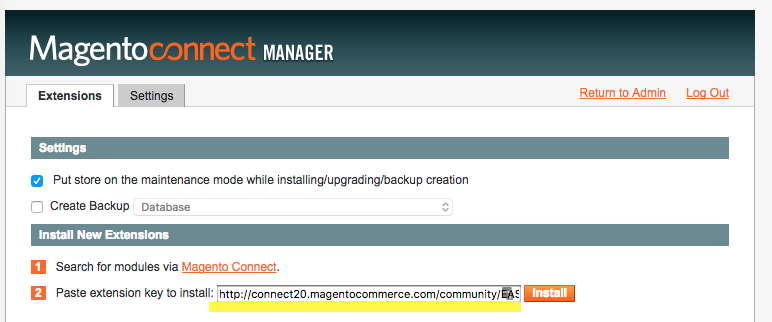

Once in Magento Connect Manager, paste this extension key to install:

http://connect20.magentocommerce.com/community/EASYNOLOBANCASELLAPRO

Then click on Proceed.

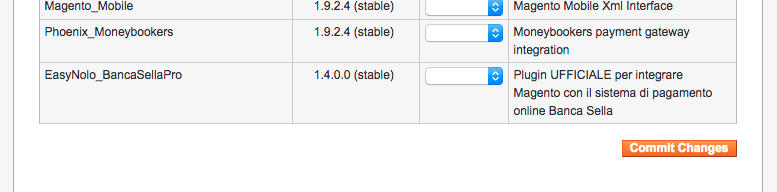

After clicking on Refresh at the bottom of the page, you should see the plugin correctly installed:

To see if the module is correctly installed select System > Configuration > Advanced > Advanced > and check that the option EasyNolo_BancaSellaPro is Enabled.

Banca Sella PRO and IWD One Step / Page Checkout

if you use IWD One Step / Page Checkout (IWD_Opc), replace the content of the file EasyNolo_BancaSellaPro.xml inside app/etc/modules with EasyNolo_BancaSellaPro.xml.Onepage.bak. This way you’ll set the dependency to IWD_Opc the Banca Sella PRO and the two will work together.

Next, go to System > Cache Management and refresh the cache.

Install via archive file

We provide the archive file if you want to try newest versions of the plugin. You can download from hereexternal link.

For install instructions of zip file extensions refer to the guideexternal link.

Configuration

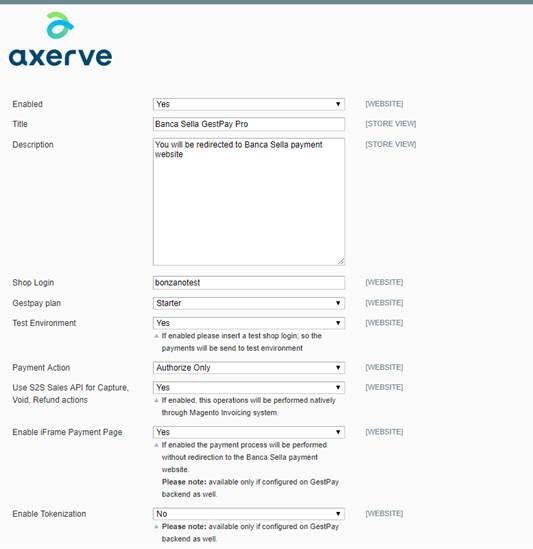

Once logged in in Magento, select System > Configuration > Payment methods and expand Banca Sella PRO section. Here is an example of the configuration section:

We will discuss now the single items.

Option
Description

Enabled

If set on Yes, this payment method is shown to the user in the payment page.

Title

The payment method title that will be shown to the user at checkout.

Description

A message shown in checkout before the user is redirected to Axerve Ecommerce Solutions payment page.

Shop Login

The shop code given by Axerve. It identifies the merchant.

Test Environment

If enabled, transactions are processed in the test environmentexternal link. To use the test environment you must also set the Test Shop Login).

Payment Action

This option sets how the payment is processed by Axerve Ecommerce Solutions. The choices are:

  • Authorize Only: on payment, Axerve Ecommerce Solutions only performs a transaction authorization.

  • Authorize and Capture: on payment, Axerve Ecommerce Solutions performs an authorization request together with the settlement of a transaction, using the Server-to-Server APIs if the setting “Use S2S Sales API for Capture, Void, Refund actions” is enabled. If on Axerve Merchant Back-Office M.O.T.O. setting is set to contextuality between authorization and settlement, Magento Capture Offlineexternal link will be performed.

Use S2S Sales API for Capture, Void, Refund actions

If enabled, Capture, Void and Refund features are directly integrated in Magento, so that you don’t have to access Axerve Back-Office to do this.

Enable iFrame Payment Page

This setting permits the user to pay directly on the store checkout page, without being redirected to Axerve Ecommerce Solutions payment page.

Enable Tokenization

Enables tokens for recurring payments.

Enable low risk profile

Enable a limit risk level. If the low risk profile is active, you should configure:

  • Llow risk shop login: replace the shopLogin for the transaction whiout the Token and with amount under the threshold

  • Low risk threshold: under this value, the transaction use the low risk show login

New order status

Order status before the payment process

Gateway Language

The language to use in Axerve Ecommerce Solutions payment page.

Status of order cancelled by customer

By this setting you can choose the status of a cancelled order, if the payment is interrupted by the user.

Status of order cancelled by Banca Sella

By this setting you can choose the status of a cancelled order, if the payment is interrupted by Axerve Ecommerce Solutions.

Status of order confirmed by Banca Sella

With this option you can set the status of an payed order.

Enable Anti-Fraud Check

If enabled, the amount of the payment in Magento is verified against the amount of the proessed payment in Axerve Ecommerce Solutions. If the payment doesn’t pass this check, the order gets the status Review Payment and Fraud.

Payment from Applicable Countries

Filter by countries. If it’s set to Specific Countries, only users from countries selected in the configuration Authorized Countries will be allowed to use the payment method.

Test payment URL

Sandbox endpoint for payment

Test S2S URL

Sandbox endpint for notifications

Live payment URL

Production endpoint for payment

Live S2S URL

Production endpoint for notifications

Sort Order

Sets the order of this payment method against the others.

Enable log

if yes, logs messages in EasyNolo_BancaSellaPro file in Magento directory var/log.

Insert reduntant log message in the order

Add more log in payment page

Fraud Prevention

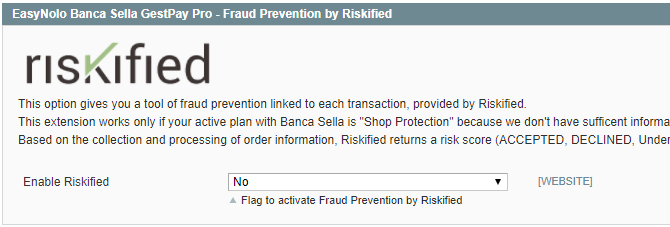

In Configuration > Payment Methods you can choose Axerve Guaranteed Payment - Riskified:

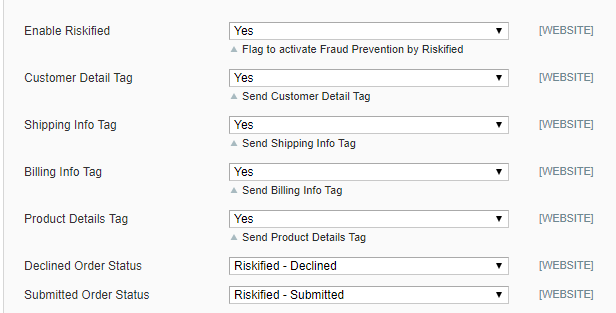

When enabled, you can set these options:

In System > Configuration > Payment methods > EasyNolo Banca Sella Axerve Ecommerce Solutions Pro Alternative Payments you can also decide which payment methods to enable (for example Alipay, Klarna, Paypal, Sofort and others).

LOG files

The logs are saved in the /var/log path, in the root folder of Magento.

Merchant Back Office Configuration

In Configuration > Environment > Response Address, set your configuration in the following way:

  • URL for positive response (mandatory): it is the URL to whom Axerve Ecommerce Solutions redirects the user after the payment process, in case of success.

http://<< your domain >>/bancasellapro/gestpay/result

  • URL for negative response (mandatory): it is the URL to whom Axerve Ecommerce Solutions redirects the user after the payment process, in case of failure.

http://<< your domain >>/bancasellapro/gestpay/result

  • URL Server to Server

http://<< your domain >>/bancasellapro/gestpay/s2s

If your store has store codes in the URL, put it in the response URL:

http://<< your domain >>/it_IT/bancasellapro/gestpay/s2s

Here the store code is it_IT. The module will automatically identify the store where the purchase was made.

default

Some errors (404, 403) may be due to incorrect typing of the URLs (e.g. if www is missing from the address)

Token

To enable the token feature you have to disable 3D secure security protocol. By disabling the protocol, the module can request the authorization on the credit card for recurrent payments. It’s not possible to use security protocols with recurring payments.

You can disable 3D secure by contacting Axerve customer care.

Authorization and Settlement of a transaction

Authorization request

With M.O.T.O. configuration, Axerve Ecommerce Solutions allows to separate the authorization and settlement phases. If enabled, the first transaction will be limited to the authorization request, otherwise Axerve Ecommerce Solutions will settle the amount immediately.

The plugin works accordingly to this configuration, implementing Axerve Ecommerce Solutions S2S API for SettlementCancel and Refund. In case you are not using S2S services you have to manually settle the transaction in the merchant back office.

Settlement

With the settlement operation the authorized amount will permanently be transferred to the merchant account. To use it, M.O.T.O. must be configured to separate the authorization from the settlement.

With this configuration, Magento will create the order and, on checkout, it will block the necessary amount with the authorization operation (the merchant will receive an email from Axerve Ecommerce Solutions).

When the shop administrator requests the invoice, Magento will ask Axerve Ecommerce Solutions to settle the amount (and it will send an email to the merchant).

Cancel

Cancelling a transaction occurs when you cancel an authorized transaction. It can be performed only with M.O.T.O. configured to separate authorization and settlement. It can be performed only on transactions that are not settled. This operations can be performed by Magento backend via the panel Sales > Sales and orders > Orders, and from the order detail by clicking on “Void”.

Refund

Refund is the operation of refunding a settlement. At a fiscal level, it is a charge on the merchant account and a credit on the buyer’s card. This operation can be performed only on already settled transactions.

A settled transaction can be refunded partially and more than once, until the total of the original amount is reached. These operations are done from Magento using the control panel Sales > Orders and Sales > Invoices > Credit Note and clicking on Refund.

Internationalization

Labels for this module can be translated in every language, using Magento translation system based on CSV. You’ll find that the plugin already contains two languages:

  • English (US): en_US

  • Italian (Italy): it_IT

Functionality

Functionality
Functions to be contracted and/or configured on the Backoffice

iFRAME

iFrame

Card saving and token use

  • Tokenization

  • Authorization S2S

  • Enable TOKENTOKENEXPMONTH e TOKENEXPYEAR fields in “Fields & Parameters” section of Backoffice

Settle payments

Cancel and settle S2S

Cancel payments

Cancel and settle S2S

Refund

Refund S2S

Riskified

Riskified
